Adding Pictures

Remember enabling the Images option as part of configuring the wiki? Let's add a picture to the Home page.

 Note

Only users with the necessary permission can add pictures to wiki pages. More on configuring user permissions later. Since you are logged in as the Admin, you have the necessary permission.


In addition to adding pictures by uploading them (as described here), you can also select files that have already uploaded. See Using Files in Wiki Pages for more information.

To begin:

  1. On the Home page, click Edit. The Edit page appears.
  2. Click the Choose or upload images button. The Upload File window appears.

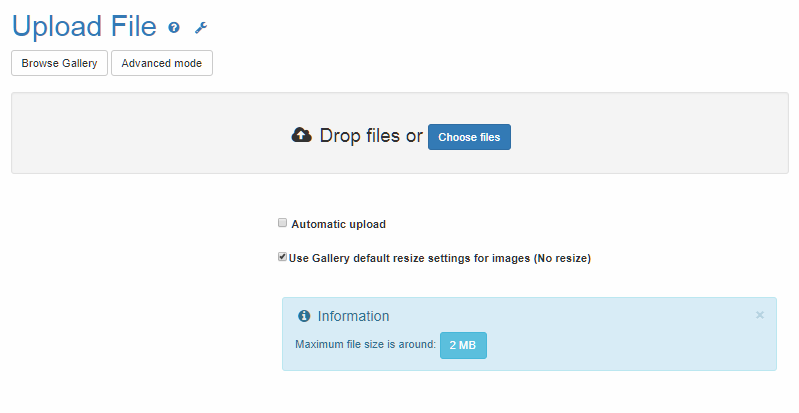

    Upload File
    Select a picture to upload.

     Tip

    Click Advanced Mode to include additional a custom title or description for the image file.
  3. Click Choose files and select an image from your PC.
    or
    Click and drag the image from your PC desktop to the Drop files area in the Upload File window.

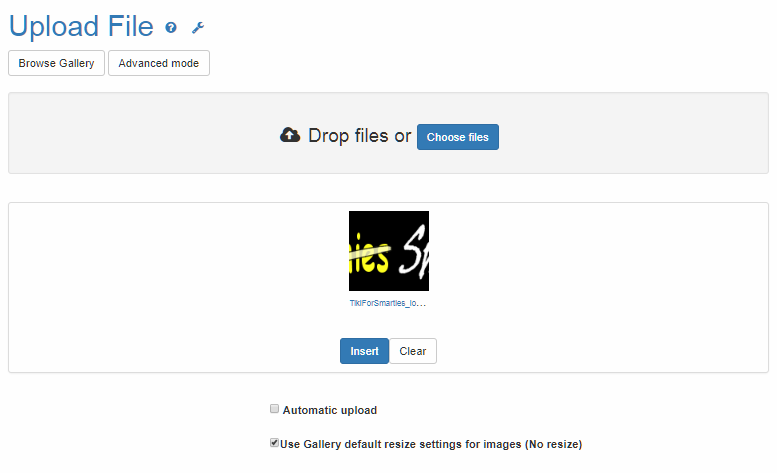

  4. Click Upload. After successfully uploading the file, Tiki shows you a thumbnail of the image (generated automatically).
    Upload File

     Tip

    You can specify the size of the thumbnail when Configuring File Galleries.

    Click Additional Info to display the necessary HTML and wiki code to use this image in a page.
  5. Click Insert. Tiki closes the Upload window and automatically inserts the necessary wiki syntax to the Edit area:
    {img fileId="1" thumb="box]"}
  6. On the Edit page, click Save. Tiki saves the information, and reloads the page with the picture.

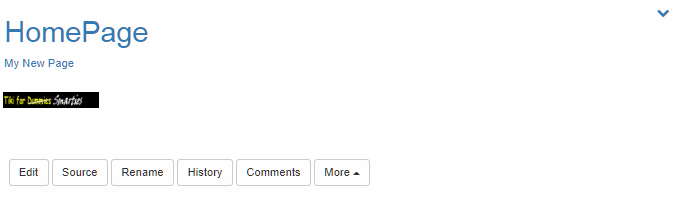

    HomePage with picture
    By default, Tiki displays a thumbnail of the image. Click the image to see the full-size image.

 Note

Remember, only user groups with the correct permissions will be able to view images from the file gallery. See Assigning Anonymous Permissions for more information.

Editing Pictures

After adding a picture, you can customize how the image appears on the wiki page.
From the HomePage:

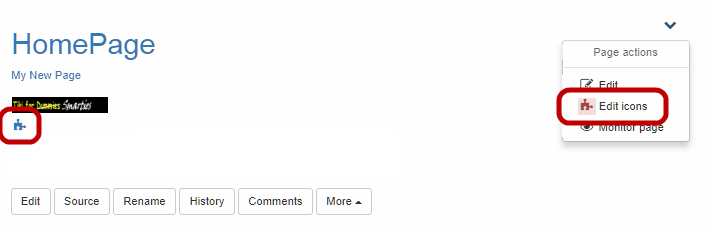

  1. Select Page Actions > Edit Icons. Tiki now shows the Edit Plugin button below the image.
  2. Click the Plugin edit button. The Image Plugin window appears.

     Note

    If the Plugin edit button is not visible, click the Toggle edit icons button at the top of the page.

    Home Page
    Editing a picture.
  3. Use the Image window to edit any of the attributes for the image. Let's make some changes to the image:

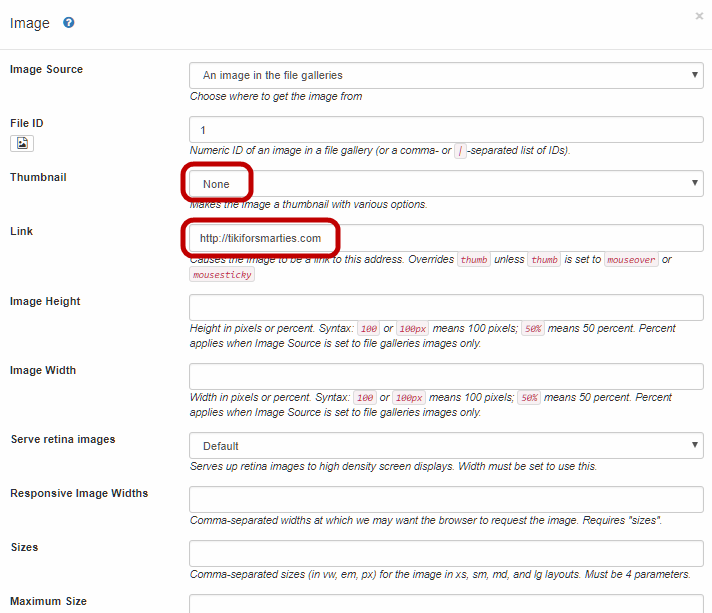

    Image Plugin
    Editing the picture.
    • Thumbnail: Select None. This will show the image as full-size.
    • Link: Enter the URL of another website. This will make the image click-able.
  4. Click the Advanced options button.
    • In the Align image field select Right.
  5. Click Submit. Tiki reloads the HomePage — notice that the image is now aligned to the right side of the page.

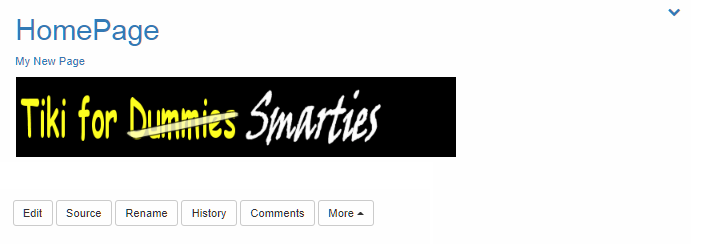

    HomePage with fullsize image.


Tiki now shows the image full-size, right-aligned,... and it is clickable.

See Installing and Accessing Plugins for more information on using the Plugin editor and help.

See the Tiki documentation for complete information (including available options) for using images in wiki pages.

 Tip

Browse the Preloaded Images listing for many useful icons and images pre-loaded in Tiki that you can simply use.


Created by Rick Sapir (ricks99). Last Modification: Monday June 15, 2020 03:39:30 pm EDT by Rick Sapir (ricks99).
